Dutchclamp SE 36 - 52 Types

Two Bolt Single Way Cleats

Dutchclamp SE 36 - 52 Cable CleatsApplications: For the mounting of one single- or multi-conductor cable. For low, medium and high voltage cables with diameters of 36 - 52 mm as well as conduits and hoses.

Characteristics:
·  Made of glass fibre reinforced polyamide (PA).
·  Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions.
·  Self-extinguishing V-0 (UL94), halogen-free, low smoke.
·  Temperature range from -40 °C to 120 °C.
·  Mechanical strength: 20,000 Nm.
·  Black coloured.
·  Available pre-mounted.
·  Fasteners meeting your specifications can be included.

Testing: By UL, KEMA, Eaton and Centrilab (reports available upon request).

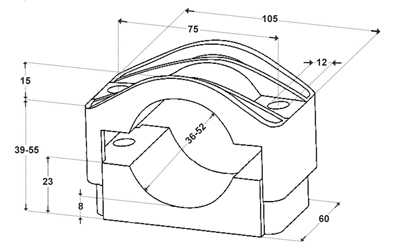

Dimension diagram:
Dimensions in mm
Mechanical
strength
Type
D ø L B l d H1 H2
h a
SE 36-52 36-52 105 60 75 12 39-55 15 23 8 20.000 Nm



- Download the Data Sheet for Dutchclamp SE Type Cable Cleats
