Dutchclamp SE 100 - 135 Types
 Applications: For the mounting of one single- or multi-conductor cable. For low, medium and high voltage cables with diameters of 100 - 135 mm as well as conduits and hoses.
Characteristics:
· Made of glass fibre reinforced polyamide (PA).
· Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions.
· Self-extinguishing V-0 (UL94), halogen-free, low smoke.
· Temperature range from -40 °C to 120 °C.
· Mechanical strength: 67,400 Nm.
· Black coloured.
· Available pre-mounted.
· Fasteners meeting your specifications can be included.
Testing: By UL, KEMA, Eaton and Centrilab (reports available upon request).

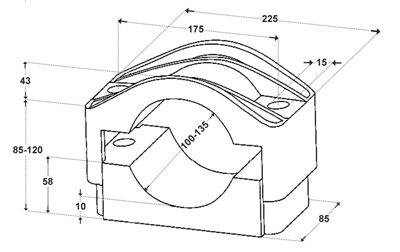

Dimension diagram:
Dimensions in mm
|
Mechanical
strength |
Type
|
D ø |
L |
B |
l |
d |
H1 |
H2
|
h |
a |
|
| SE 100-135 |
100-135 |
225 |
85
|
175 |
15 |
85-120 |
43 |
58 |
10 |
67.400 Nm |
 - Download the Data Sheet for Dutchclamp SE Type Cable Cleats |
|
