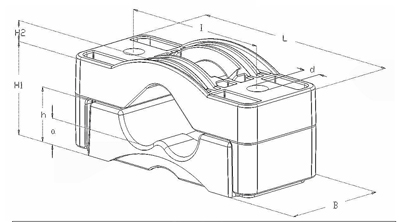

Dutchclamp Triple 118 - 150 Types

Trefoil Cable Cleats

Applications: For the mounting of three single- or multi-conductor cables in a triangular configuration. For low, medium and high voltage cables with diameters of 118- 150 mm as well as conduits and hoses.

Characteristics:
· Made of glass fibre reinforced polyamide (PA).
· Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions.
· Self-extinguishing V-0 (UL94), halogen-free, low smoke.
· Temperature range from -40 °C to 120 °C.
· Mechanical strength: 54,300 Nm.
· The mounting holes are Ø15.5 mm, allowing the allthread to be extended with threaded bushes at any desired location, thereby eliminating the possibility of damage when cables are installed in multiple layers. The existing configuration can be expanded at any time easily, simply and at little cost. Hexagonal holes are added in the bottom part of the clamp for fixing 12 and 14 mm nuts.
· The centre of the bottom part has an extra mounting hole for optional mounting using a single piece of allthread or a single bolt.
· Black coloured.
· Stackable.
· Available pre-mounted.
· Fasteners meeting your specifications can be included.

Testing:
By UL, KEMA, Eaton and Centrilab (reports available upon request).
