Dutchclamp SE 26 - 38 Types
 Applications: For the mounting of one single- or multi-conductor cable. For low, medium and high voltage cables with diameters of 26 - 38 mm as well as conduits and hoses.
Characteristics:
· Made of glass fibre reinforced polyamide (PA).
· Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions.
· Self-extinguishing V-0 (UL94), halogen-free, low smoke.
· Temperature range from -40 °C to 120 °C.
· Mechanical strength: 30,000 Nm.
· Black coloured.
· Available pre-mounted.
· Fasteners meeting your specifications can be included.
Testing: By UL, KEMA, Eaton and Centrilab (reports available upon request).

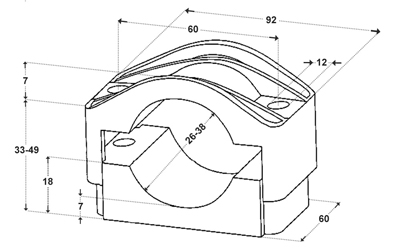

Dimensions in mm
|
Mechanical strength |
Type
|
D ø |
L |
B |
l |
d |
H1 |
H2
|
h |
a |
|
SE 26-38
|
26-38 |
92 |
60 |
60 |
12 |
33-49 |
7 |
18 |
7 |
30.000 Nm |
