Dutchclamp Triple 27 - 38 Types
 Applications: For the mounting of three single- or multi-conductor cables in a triangular configuration. For low, medium and high voltage cables with diameters of 27 - 38 mm as well as conduits and hoses.
Characteristics:
· Made of glass fibre reinforced polyamide (PA).
· Resistant to oils, UV, ozone, salts, moisture, acids and even radioactive emissions.
· Self-extinguishing V-0 (UL94), halogen-free, low smoke.
· Temperature range from -40 °C to 120 °C.
· Mechanical strength: 35,900 Nm.
· The mounting holes are Ø15.5 mm, allowing the allthread to be extended with threaded bushes at any desired location, thereby eliminating the possibility of damage when cables are installed in multiple layers. The existing configuration can be expanded at any time... easily, simply and at little cost.
· The centre of the lower shell has an extra mounting hole for optional mounting using a single piece of allthread or a single bolt.
· Black coloured.
· Stackable.
· Available pre-mounted.
· Fasteners meeting your specifications can be included. Testing:
By UL, KEMA, Eaton and Centrilab (reports available upon request).

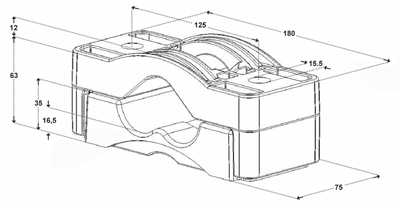

Dimension Diagram:
Dimensions in mm
|
Type
|
D ø |
L |
B |
l |
d |
H1 |
H2
|
h |
a |
| Triple 27-38 |
3x 27-38
|
180 |
75 |
125 |
15.5
|
63 |
12
|
35 |
16.5 |
